MA-COM's FR42 small profile drop-in isolators feature high performance at low cost and meet the requirements of wireless telecommunications systems.

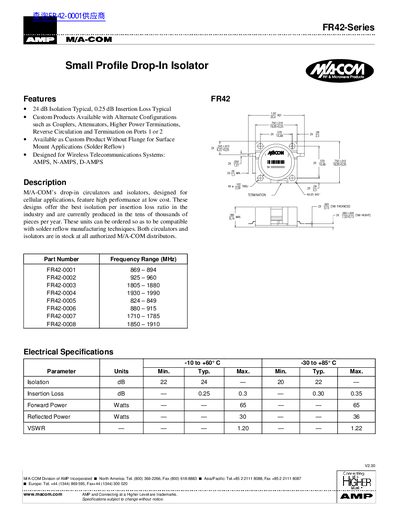

The M/A-COM FR42-Series Small Profile Drop-In Isolator is designed for wireless telecommunications systems, including AMPS, N-AMPS, and D-AMPS. These units feature high performance at low cost, offering typical isolation of 24 dB and insertion loss of 0.25 dB. They are compatible with solder reflow manufacturing techniques and are available as custom products without flanges for surface mount applications.
| Isolation (Typical) | 24 dB |
|---|---|
| Insertion Loss (Typical) | 0.25 dB |
| Operating Temperature | -10 to +60° C |
| Storage Temperature | -30 to +85° C |
| Forward Power | 65 Watts |
The typical isolation is 24 dB and the typical insertion loss is 0.25 dB.
Yes, these units can be ordered to be compatible with solder reflow manufacturing techniques.
The operating temperature range is -10 to +60° C.
