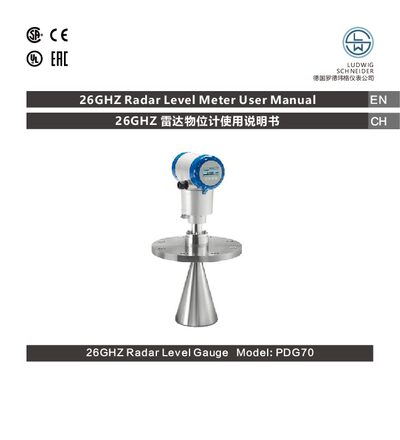

User manual for the Ludwig Schneider PDG70 26 GHz radar level meter covering installation, wiring, operation and troubleshooting.
This manual provides a complete guide for the Ludwig Schneider PDG70 26 GHz radar level meter. It includes product design details, installation requirements, electrical connections, commissioning steps, interface operation, basic settings and fault diagnosis.
The document also describes how to handle false‑echo situations, waveguide installation options, and provides service and information menus for maintenance and configuration. This manual is written in Chinese.
| Maximum measurement distance | 80 m |
|---|---|
| Operating frequency | 26 GHz |
| Echo threshold (default) | 60 mV |
| Envelope amplitude (default) | 5 mV |
The PDG70 can measure up to 80 meters.
