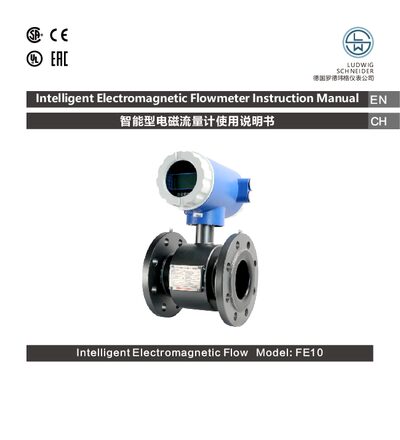

The instruction manual provides design, features, measurement principle, specifications, installation, maintenance and troubleshooting for the Ludwig…
The FE10 is an intelligent electromagnetic flowmeter designed for accurate volumetric flow measurement of conductive media in a wide range of industrial applications. It offers high measurement accuracy, LCD display, and flexible communication options such as HART, MODBUS, GPRS and PROFIBUS.
The manual covers product features, technical specifications, installation guidelines, wiring diagrams for converters, maintenance procedures, troubleshooting steps, and warranty information. Appendices provide detailed guidance on selecting electrode and lining materials for different process fluids.
| Flow measurement range | 0.5 – 10 m/s |
|---|---|
| Working temperature | -20 °C to 70 °C |
| Power supply voltage range | 85 VAC – 250 VAC (AC) or 24 V DC |
| Enclosure rating | IP65, IP67, IP68 |
The FE10 can measure flow rates from 0.5 to 10 meters per second.
The sensor can be installed on vertical, horizontal, or inclined pipes, but the center line of the two electrodes must be horizontal.
The product has a warranty period of one year from the date of shipment.
