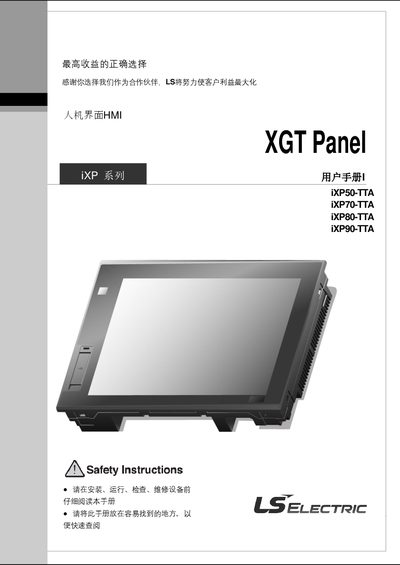

User manual for LS iXP series HMI panels covering safety, installation, configuration, diagnostics and maintenance.
This manual provides detailed information for the LS iXP series Human‑Machine Interface (HMI) panels, including safety precautions, system configuration, wiring, and maintenance procedures. It is intended for installers, technicians and end‑users who need to set up and operate the iXP50‑TTA, iXP70‑TTA, iXP80‑TTA and iXP90‑TTA models.
The document is organized into chapters such as Overview, System Settings, Diagnostic Programs, PLC connection status, storage functions, software updates, installation and wiring, EMC certification, troubleshooting, dimensions, and warranty policy. Each section contains step‑by‑step instructions, tables of specifications and safety warnings. This manual is written in Chinese.
| LCD size | 8.4 inch (21 cm) for iXP50, 10.4 inch (26 cm) for iXP70, 12.1 inch (31 cm) for iXP80, 15 inch (38 cm) for iXP90 |
|---|---|
| LCD type | B STN Mono (no TFT color) |
| Touch type | T Touch |
| Power type | AC 100‑240 V or DC 12/24 V (iXP50‑TTA uses DC 24 V only) |
| Power cable specification | 1.5 mm² – 2.5 mm² (AWG16‑12) copper conductors, recommended short cable between power source and panel |
The iXP50‑TTA model operates on DC 24 V.
Use a power cable with a cross‑section of 1.5 mm² to 2.5 mm² (AWG16‑12) and keep it short between the power source and the panel.
Turn off the HMI and external power before performing any wiring.
The warranty period is 18 months from the production date.
