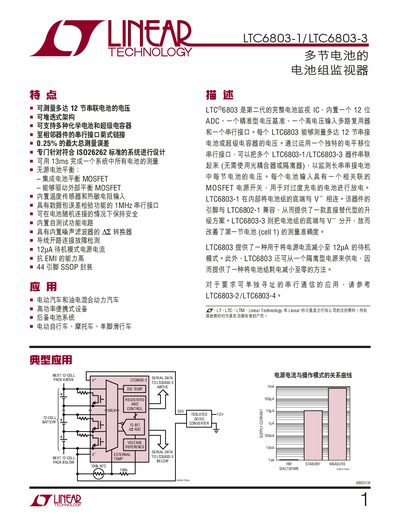

The datasheet provides specifications, features, and application information for the Linear Technology LTC6803-1 and LTC6803-3 12‑channel battery monitor ICs.
The LTC6803‑1 and LTC6803‑3 are high‑precision 12‑channel battery‑monitoring ICs that integrate a 12‑bit ADC, voltage reference, and multiplexed high‑voltage inputs. They support serial daisy‑chain communication without opto‑isolators and include integrated MOSFETs for cell balancing and external MOSFET drive.
Typical applications include electric vehicles, hybrid‑electric vehicles, high‑power portable devices, backup battery systems, electric bicycles, and other multi‑cell battery packs. The devices are offered in a 44‑lead plastic SSOP package and feature low standby current and robust EMI immunity.
| Number of channels | 12 |
|---|---|
| ADC resolution | 12‑bit |
| Maximum total measurement error | 0.25 % |
| Supply voltage (V+ to V‑) | 43.2 V |
| Standby mode supply current | 12 nA |
| Package | 44‑lead plastic SSOP |
It can monitor up to 12 series‑connected cells.
The standby mode supply current is 12 nA.
It is offered in a 44‑lead plastic SSOP package.
The maximum V+ is 43.2 V relative to V‑ = 0 V.
