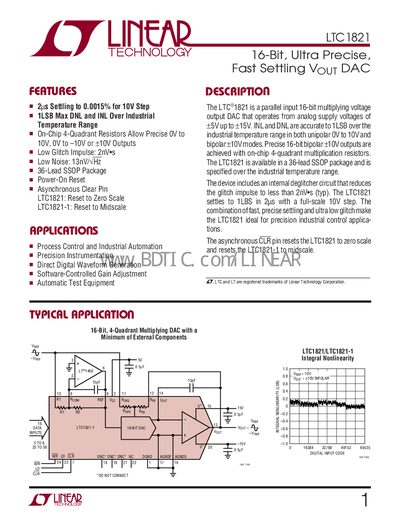

16-Bit, Ultra Precise, Fast Settling VOUT DAC
The LTC1821 is a 16‑bit parallel‑input multiplying DAC that operates from a +4.5 V to +15 V supply and provides bipolar output up to ±10 V. It features 2 µs settling to 0.0015 % of full‑scale, ultra‑low glitch impulse of 2 nV·s, and 16‑bit resolution.
The device is supplied in a 36‑lead SSOP package and includes on‑chip 4‑quadrant resistors for precise gain and offset adjustment. Detailed electrical characteristics, pin functions, and typical performance graphs are provided for design integration.
| Settling Time | 2 µs to 0.0015 % for 10 V step |
|---|---|
| Glitch Impulse | 2 nV·s |
| Resolution | 16 bits |
| Supply Voltage Range | +4.5 V to +16.5 V (positive), –4.5 V to –16.5 V (negative) |
The maximum junction temperature is 150 °C.
LTC1821C/LTC1821‑16 operate from 0 °C to 70 °C, while LTC1821‑1/LTC1821‑11 operate from –40 °C to 85 °C.
The device is offered in a 36‑lead SSOP package.
The digital input high voltage is 2.4 V.
