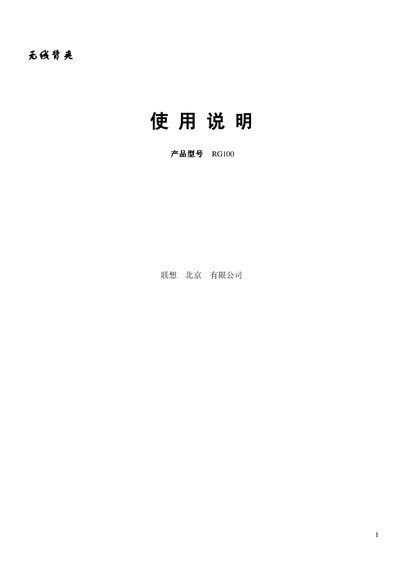

The Lenovo RG100 wireless clip user manual provides setup, operation, and troubleshooting instructions for the device.
This manual covers everything needed to use the Lenovo RG100 wireless clip, a dedicated accessory for the Tianji XP100. It includes safety rules, preparation steps, hardware specifications, battery handling, SIM‑card installation, connection to the XP100, phone and GPRS functions, and detailed troubleshooting.
The guide also explains how to configure GPRS connections, use the built‑in browser, and access technical terms. Helpful support information and warranty notes are provided at the end of the document. This manual is written in Chinese.
| Battery capacity | 1100 mAh |
|---|---|
| Dimensions | 168 mm × 77 mm × 30 mm |
| Weight | 120 g |
| GPRS class | Class 8 (1 uplink, 4 downlink) |
| Standby time | 80–150 hours |
| Talk time | 180 minutes |
| Data transmission time | ≈ 4 hours |
| Peak GPRS speed | > 40 kbps |
| Average GPRS speed | > 30 kbps |
Insert the SIM card following the illustrated direction and press the rubber seal; to remove, open the rubber seal and push the release button on the back of the clip.
Connect the clip to the Tianji XP100 power adapter; the first full charge takes about 10 hours, later charges about 5 hours, and the red indicator shows charging.
Select the GPRS option from the menu; the device will establish a GPRS connection and display the GPRS service icon.
When the battery is low, the orange (amber) indicator light flashes, prompting you to charge the device.
