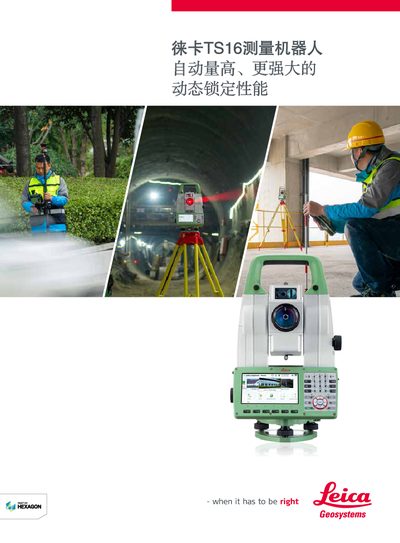

Leica TS16 is a high‑precision total‑station robot with 1″ angle accuracy, automatic height measurement and a 5 MP wide‑angle camera.
The Leica TS16 measurement robot combines a 1″ (0.3 mgon) angle measurement accuracy with an automatic height‑measurement module that reaches 1 mm precision, reducing manual setup time. It features a 5 MP wide‑angle camera, dynamic lock tracking up to ±20°, and ATR Plus automatic aiming for fast prism acquisition.
Equipped with a TI OMAP4430 1 GHz dual‑core ARM Cortex‑A9 processor, 2 GB RAM, and expandable storage, the TS16 runs Leica Captivate software for 2D/3D visualization, BIM integration and advanced data handling. It supports RS‑232, USB, Bluetooth and WLAN interfaces and meets IP55/95% dust‑water protection standards. This manual is written in Chinese.
| Angle measurement accuracy | 1″ (0.3 mgon) |
|---|---|
| Automatic height measurement accuracy | 1 mm (1 σ) |
| Distance measurement range (prism) | 30.9 m – 3500 m |
| Memory | 2 GB RAM (plus 2 GB storage) |
| Camera | 5 MP wide‑angle CMOS sensor |
| Weight (including battery) | 5.1 – 5.8 kg |
| Battery runtime | Up to 8 hours |
The TS16 provides a 1″ (0.3 mgon) angle measurement accuracy.
The automatic height measurement module is accurate to 1 mm (1 σ).
It can measure distances from 30.9 m up to 3500 m using a prism.
The built‑in rechargeable battery provides up to 8 hours of operation.
