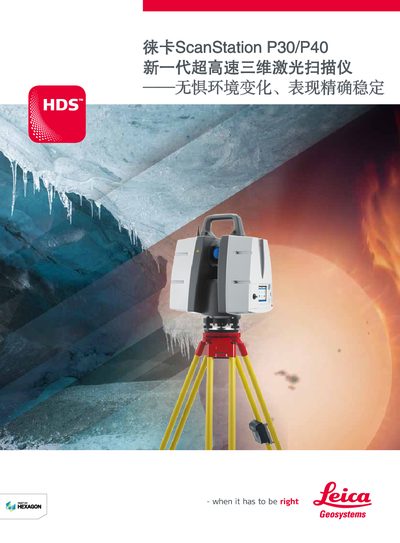

Leica ScanStation P30/P40 is a high‑speed 3D laser scanner with up to 270 m range, 1 M points/s rate and rugged IP54 design.
The ScanStation P30/P40 combines Leica’s high‑precision angle‑distance measurement, WFD waveform digitisation, Mixed Pixels filtering and HDR imaging to deliver fast, accurate point clouds up to 270 m away. It features dual‑axis compensation, on‑board calibration, a 256 GB SSD, and hot‑swap dual batteries for uninterrupted field work.
Leica’s Cyclone software suite provides automated denoising, stitching, modelling and data extraction, while the system supports remote control via iPhone/iPad, USB 2.0, Gigabit Ethernet and WLAN. The scanner meets Class 1 laser safety standards and operates from –20 °C to +50 °C with an IP54 protection rating. This manual is written in Chinese.
| Maximum scanning distance | 270 m |
|---|---|
| Scan rate | 1,000,000 points/second |
| Range noise @ 50 m | 0.5 mm rms |
| Operating temperature range | -20 °C to +50 °C |
| Ingress protection | IP54 |
| Internal data storage | 256 GB SSD |
| Weight (without battery) | 12.25 kg |
| Laser safety class | Class 1 (IEC 60825‑2014) |
The scanner can acquire data up to 270 meters away.
With two internal batteries it runs for more than 5.5 hours; an external battery provides over 7.5 hours.
It operates from –20 °C to +50 °C.
The unit includes a built‑in 256 GB solid‑state drive.
