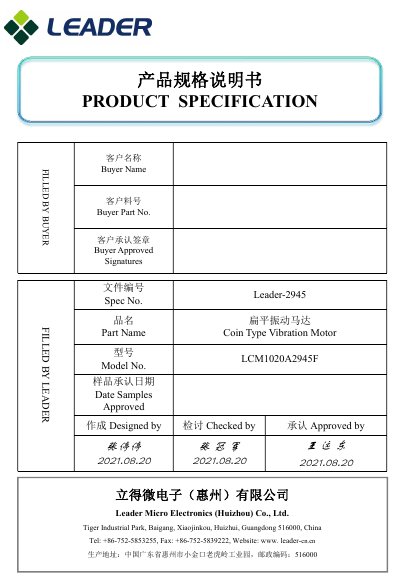

Leader LCM1020A2945F Coin Type Vibration Motor Specification Sheet

This document provides the technical specifications, operating conditions, and reliability characteristics for the Leader LCM1020A2945F coin type vibration…

Brand: Leader
Category: Other Electronics
Document type: Product Leaflet
Language: Chinese
Pages: 12
File format: PDF
File size: 1.3 MB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: B5AD2525BDDF5BE656F5BD7D42883913
PDF: Leader LCM1020A2945F Coin Type Vibration Motor Specification Sheet PDF

About this manual

This specification sheet details the technical parameters for the Leader LCM1020A2945F coin type vibration motor. It covers applicable scope, operating and testing conditions, initial electrical characteristics, and mechanical performance metrics such as noise and vibration levels. This manual is written in Chinese.

What's inside

Applicable Scope
Operating Conditions
Test Conditions
Initial Electrical Characteristics
Mechanical Characteristics
Reliability Characteristics
Standard Measuring Method
Caution in Use
Environmental Management Materials
Packaging

Specifications

Rated Voltage	3.0V DC
Operating Voltage Range	2.7~3.3V DC
Rated Speed	10000rpm Min
Rated Current	80 mA Max
Starting Voltage	2.3V DC Max
Insulation Resistance	10MΩ Min
Mechanical Noise	≤50dB (A)
Vibration Test	1.0G Min
Life (Test Cycles)	86400 cycles

Frequently asked questions

What is the rated voltage for the LCM1020A2945F motor?

The rated voltage is 3.0V DC.

What is the maximum operating current?

The maximum rated current is 80 mA.

What is the maximum starting voltage?

The maximum starting voltage is 2.3V DC.

What is the minimum vibration level for the test?

The minimum vibration level for the test is 1.0G.
