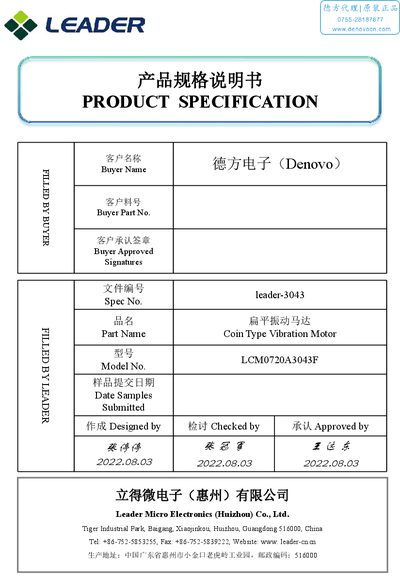

Product specification file for the Leader LCM0720A3043F coin type vibration motor, detailing electrical, mechanical, and reliability characteristics.
This document is a product specification file for the Leader LCM0720A3043F coin type vibration motor. It outlines the applicable scope, operating and testing conditions, and provides detailed initial electrical and mechanical performance data. The motor is designed for use in environments ranging from -20°C to +60°C and operates on a DC voltage between 2.7V and 3.3V. This manual is written in Chinese.
| Rated Voltage | 3.0 V DC |
|---|---|
| Operating Voltage Range | 2.7 ~ 3.3 V DC |
| Rated Speed | 9000 Min rpm |
| Rated Current | ≤ 85 mA |
| Starting Voltage | ≤ 2.5 V DC |
| Insulation Resistance | ≥ 10 MΩ |
| Life Test Cycle | 35,000 cycles |
The rated voltage is 3.0 V DC.
The motor operates on a voltage range of 2.7 V to 3.3 V DC.
The operating environment is -20 to +60°C with 65 ± 20% RH.
The rated speed is 9000 Min rpm.
