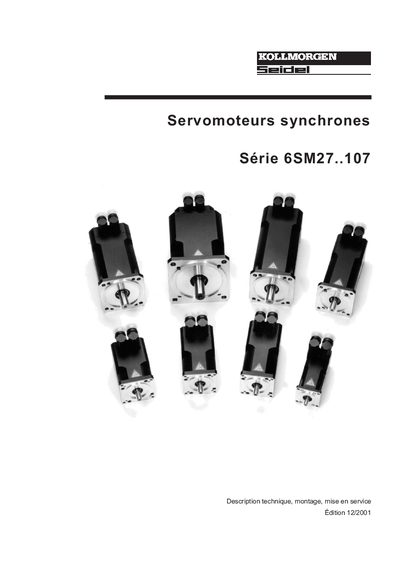

Technical description, mounting, commissioning and specifications for Kollmorgen 6SM27..107 synchronous servo motors.
This manual provides a complete technical description of the Kollmorgen 6SM27..107 synchronous servo motors, including general information, safety remarks, and the manufacturer's declaration. It is intended for qualified professionals who install, commission, and maintain these motors in industrial equipment.
The document covers mounting procedures, wiring, dimensional drawings, performance curves, standard equipment, optional features, storage and transport guidelines, and troubleshooting. All sections emphasize compliance with safety standards and proper handling to ensure reliable operation. This manual is written in French.
| Classe climatique | 3K selon EN 50178 |
|---|---|
| Température ambiante de fonctionnement | 5 °C … +40 °C |
| Humidité relative admissible | 85 % sans condensation |
| Durée de vie des roulements | > 20 000 heures de service |
| Classe d'isolation | IP65 (standard) / IP64 (traversée d'arbre) |
| Facteur de qualité vibrationnelle | N selon DIN ISO 2373 |
| Frein d'arrêt intégré | Oui, option G, 24 V DC |
The motor is rated for an ambient temperature range of 5 °C to +40 °C under standard installation conditions.
The bearings are designed for a service life of more than 20 000 hours.
The standard version has an IP65 protection class, while the shaft‑through version is IP64.
