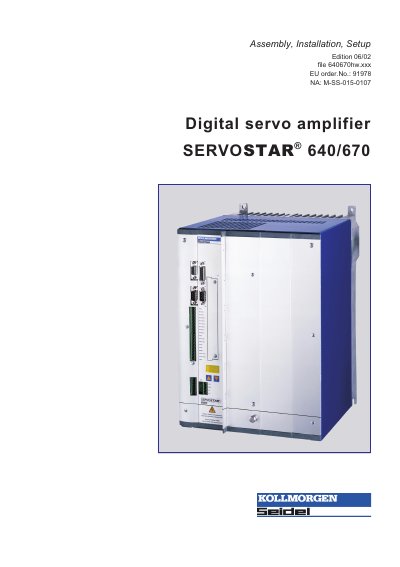

This file contains the assembly, installation and setup instructions for the digital servo amplifier SERVOSTAR® 640/670
The SERVOSTAR 640/670 installation manual provides detailed instructions for assembling, wiring, and configuring the digital servo amplifier. It covers safety requirements, regulatory compliance, and step‑by‑step procedures for connecting power, motor, and feedback devices.
The document also describes the available interfaces (CANopen, PROFIBUS, RS‑232, encoder types), optional expansion cards, and software setup on Windows platforms. Appendices include troubleshooting, glossary, and contact information for Danaher Motion support.
| Auxiliary supply voltage | 24 V |
|---|---|
| Stepper‑motor controller signal level (SV) | 5 V |
| Stepper‑motor controller signal level (24 V) | 24 V |
