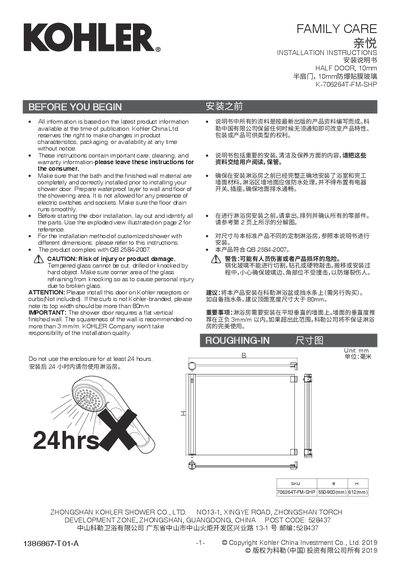

Installation guide for the Kohler K-706264T-FM-SHP 10 mm tempered glass half shower door, covering tools, steps, and safety warnings.
This manual provides the necessary information to install the Kohler half‑door shower enclosure. It includes safety precautions, required tools, and preparation steps such as verifying wall squareness and ensuring a waterproof substrate before beginning installation.
The guide walks the installer through positioning the door 20 mm above the floor, aligning the hinge, marking and drilling screw holes, installing hollow‑wall anchors, and securing the lock seat with water diverter. It also notes the need for a level surface and the prohibition of cutting or drilling the tempered glass. This manual is written in Chinese.
| Glass thickness | 10 mm |
|---|---|
| Door width range | 550‑900 mm |
| Installation clearance above floor | 20 mm |
| Maximum wall squareness tolerance | ±3 mm per meter |
The door glass should be installed 20 mm above the ground.
No, the tempered glass cannot be cut, drilled, or struck by hard objects.
The wall should be within ±3 mm per meter of verticality.
