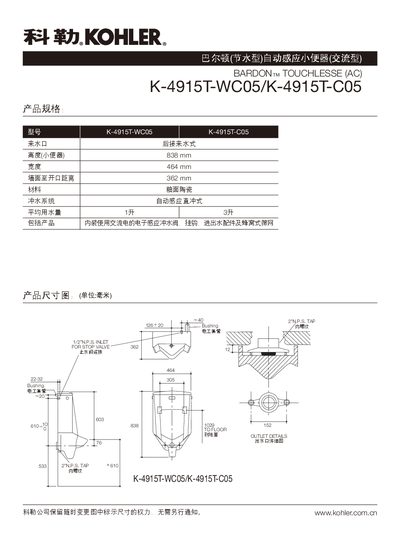

The Kohler Bardon Touchlesse K-4915T-WC05/K-4915T-C05 urinal specification sheet details dimensions, water usage, material, and connection information.
The Bardon Touchlesse K-4915T series is an automatic sensor urinal (AC type) made of glazed ceramic. It includes an electronic sensor flush valve, hook, water inlet/outlet fittings, and a honeycomb screen.
Key dimensions are a height of 838 mm, width of 464 mm, and a wall‑to‑opening distance of 362 mm. The unit uses a 1/2" N.P.S. inlet for a stop valve and a 2" N.P.S. tap with internal threads. Average water consumption per flush is 1 L (up to 3 L). This manual is written in Chinese.
| Height | 838 mm |
|---|---|
| Width | 464 mm |
| Wall to opening distance | 362 mm |
| Material | Glazed ceramic |
| Average water consumption per flush | 1 L (up to 3 L) |
| Stop valve inlet size | 1/2" N.P.S. |
| Tap thread size | 2" N.P.S. internal thread |
The urinal uses about 1 L of water per flush, with a maximum of 3 L.
It is 838 mm tall, 464 mm wide, and the distance from the wall to the opening is 362 mm.
The urinal is constructed from glazed ceramic.
The stop‑valve inlet is 1/2" N.P.S. and the tap has a 2" N.P.S. internal thread.
