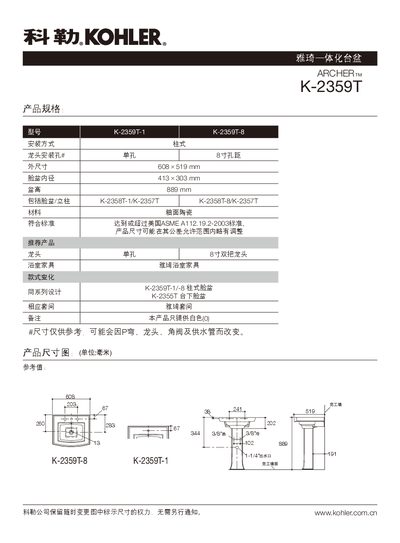

This Kohler product leaflet provides dimensions, installation options, material, and compliance details for the K-2359T integrated bathroom sink.
The K-2359T is an integrated bathroom sink (雅琦一体化台盆) offered by Kohler. It features a glazed ceramic construction with a sleek pillar‑type design that combines the basin and support column in one unit.
The sink is available with a single 8‑inch faucet hole and can be installed as a pillar‑type basin. It complies with the U.S. ASME A112.19.2‑2003 standard, and Kohler recommends pairing it with an 8‑inch double‑handle faucet. Dimensions are provided for reference, and minor variations may occur due to installation factors. This manual is written in Chinese.
| Overall size | 608 × 519 mm |
|---|---|
| Basin inner dimensions | 413 × 303 mm |
| Height | 889 mm |
| Material | Glazed ceramic |
| Compliance | ASME A112.19.2‑2003 |
| Installation type | Pillar‑type with single 8‑inch faucet hole |
The sink measures 608 mm by 519 mm overall.
It is made of glazed ceramic.
It meets or exceeds the U.S. ASME A112.19.2‑2003 standard.
The sink has a single 8‑inch faucet hole.
