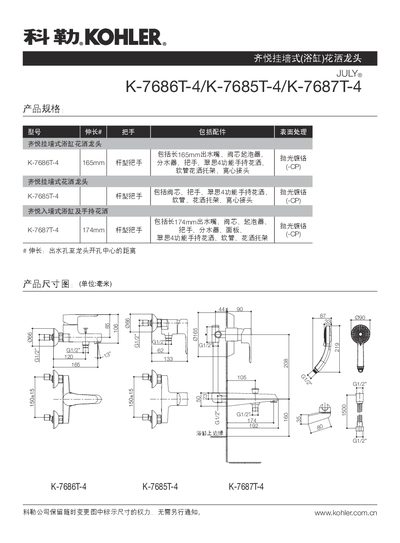

Kohler K-7686T-4/K-7685T-4/K-7687T-4 Bath Tub Wall-Mount Sprayer Faucet Product Leaflet

About this manual

The document lists the specifications for three Kohler wall‑mount bathtub sprayer faucets: model K-7686T-4, K-7685T-4 and K-7687T-4. Each model includes a rod‑type handle, a water outlet, valve core, aerator, diverter, handheld 4‑function spray, hose, spray holder and a polished chrome (‑CP) centrifugal connector.

Dimensions are given in millimetres, with the K-7686T-4 and K-7685T-4 having a 165 mm extension and the K-7687T-4 a 174 mm extension. All models use a G1/2" thread (Ø66 mm) for connection to the bathtub and feature a polished chrome surface finish. This manual is written in Chinese.

What's inside

• Product Dimensions
• Included Accessories
• Surface Finish
• Thread Size
• Installation Details

Specifications

Frequently asked questions

What is the extension length of the K-7686T-4 and K-7685T-4 faucets?

Both the K-7686T-4 and K-7685T-4 models have an extension length of 165 mm.

What surface finish do the faucets have?

All three models are finished in polished chrome (‑CP).
