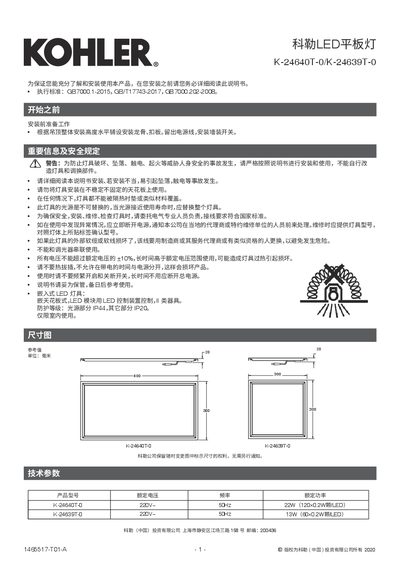

Installation, usage, and maintenance guide for Kohler K-24640T-0/K-24639T-0 LED panel lights.
This manual provides step‑by‑step instructions for installing Kohler LED panel lights model K-24640T-0 and K-24639T-0. It covers preparation of the ceiling grid, wiring requirements, connector assembly, and mounting the panel frame, with safety warnings such as avoiding unstable ceilings and not exceeding the rated voltage.
The guide also details technical parameters, maintenance procedures, and safety precautions. The LED source is non‑replaceable, must be serviced by qualified personnel, and the fixture is not compatible with dimmers. Cleaning and storage instructions are included. This manual is written in Chinese.
| Rated Voltage | 220V~ |
|---|---|
| Frequency | 50Hz |
| Rated Power (K-24640T-0) | 22W (120×0.2W LEDs) |
| Rated Power (K-24639T-0) | 13W (60×0.2W LEDs) |
| IP Rating | IP44 (light source) / IP20 (other parts) |
| Installation Height‑to‑Width Ratio | 1.2 |
No, the manual warns not to install the fixture on an unstable or unfixed ceiling.
The LED source is not replaceable; the whole fixture must be replaced when the LED reaches end of life.
No, the product cannot be connected in series with a dimmer.
