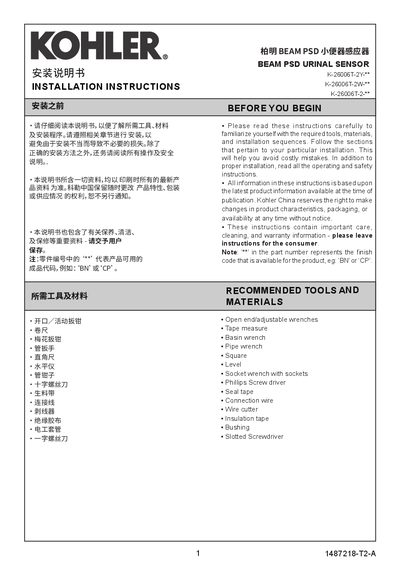

Step‑by‑step instructions, required tools, and specifications for installing Kohler BEAM PSD urinal sensors (models K‑26006T‑2Y‑**, K‑26006T‑2W‑**…
This installation guide explains how to install the Kohler BEAM PSD urinal sensor, covering required tools, rough‑in dimensions, wiring, sensor cover mounting, and maintenance. It also provides safety notes and warranty information.
Key sections include recommended tools and materials, detailed rough‑in dimension drawings, power and water‑pressure requirements, sensor‑cover installation steps, wiring to the AC power unit, operating instructions, and filter‑screen cleaning procedures. This manual is written in Chinese.
| Power supply | AC/DC transformer input AC 220V 50/60Hz |
|---|---|
| Flush volume (0.5 L model) | 0.5 L per flush |
| Flush volume (1 L model) | 1 L per flush |
| Flush volume (2.5 L model) | 2.5 L per flush |
| Environmental temperature range | 1 °C to 55 °C |
| Sensing distance | ≈70 ± 10 cm from sensing window |
The sensor is designed to work with a water‑pressure range of 0.18 MPa to 0.55 MPa.
Remove the sensor cover, locate the adjusting screw in the center of the stop valve, and turn it to the desired position to set the flushing volume.
One AC power unit can supply power to only one urinal sensor.
