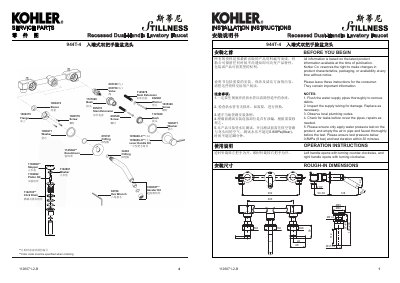

Kohler 944T-4 Recessed Dual-Handle Lavatory Faucet Installation Instructions

Installation instructions for the Kohler 944T-4 recessed dual-handle lavatory faucet, including rough-in dimensions, operation, and assembly steps.

Brand: Kohler
Category: Other
Document type: Installation Guide
Language: Chinese
Pages: 2
File format: PDF
File size: 3.1 MB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: B8FAAAFB1C7EB9BA99E0ABA7128AC48A
PDF: Kohler 944T-4 Recessed Dual-Handle Lavatory Faucet Installation Instructions PDF

About this manual

This document provides installation instructions for the Kohler 944T-4 Recessed Dual-Handle Lavatory Faucet. It includes rough-in dimensions, operation instructions, and a list of service parts with part numbers. Important notes regarding water pressure testing and local plumbing codes are provided before beginning the installation. This manual is written in Chinese.

What's inside

Installation Instructions
Rough-In Dimensions
Operation Instructions
Service Parts
Installation Checkout
How To Install The Yoke
How To Install The Handles
How To Install The Drain
How To Install The Spout
Cleaning Instructions

Specifications

Test Pressure Limit	0.8MPa (8 bar)
Test Duration Limit	30 minutes
Supply Pipe Thread	G1/2˝
Wall Distance	50mm to 65mm

Frequently asked questions

How do you operate the faucet handles?

Turn the left handle counter-clockwise to open and the right handle clockwise to open.

What is the maximum test pressure for the faucet?

The test pressure must not exceed 0.8MPa (8 bar).

How should the hot water supply pipe be connected?

Connect the hot supply pipe to the end of the yoke with the red mark.
