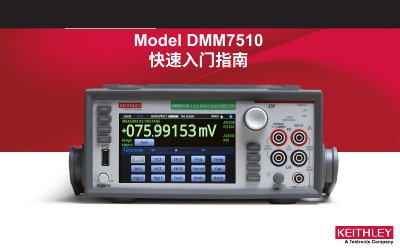

This quick start guide gives safety instructions, setup steps, and basic operation for the Keithley DMM7510 digital multimeter.
The DMM7510 is a 7½‑digit digital multimeter with a large color touchscreen and high‑precision measurement capabilities. This guide walks users through unpacking, connecting power, and performing basic measurements so the instrument can be used safely and efficiently.
Key sections cover safety precautions, power and environmental specifications, connection procedures, basic operation (including USB data saving and command‑set selection), and a short FAQ that addresses common setup questions. The guide also points to the full user manual and reference documents for advanced features. This manual is written in Chinese.
| Input Power | 100 V – 240 V RMS, 50 Hz – 60 Hz (auto‑detect) |
|---|---|
| Maximum AC Power | 60 VA |
| Operating Altitude | up to 2000 m (6562 ft) |
| Operating Temperature | 0 °C – 50 °C (relative humidity < 80 % at 35 °C) |
| Storage Temperature | -30 °C – +70 °C |
| Pollution Class | 1 or 2 |
Verify the connections between the instrument and the test leads, and also check the connections between the device under test and its sockets.
