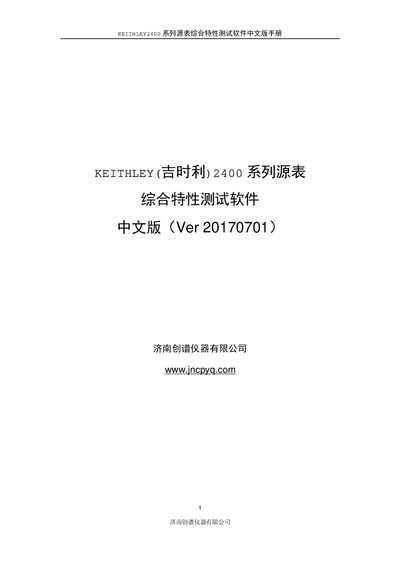

Keithley 2400 Series SourceMeter Comprehensive Test Software User Manual

About this manual

The software supports the Keithley 2400 series (2400, 2401, 2410, 2420, 2430, 2440) on Windows XP through Windows 10, requiring about 200 MB of free disk space. It communicates via either a GPIB (IEEE‑488) or RS‑232 interface, with a default GPIB address of 24.

The manual guides users through software installation (no install needed, just unzip), driver requirements (NI‑VISA), system parameter setup, creating and editing test projects, and configuring a wide range of measurement functions such as single‑step/current‑voltage scans, multi‑step scans, diode IV, and electrochemical applications. Custom scan sequences up to eight segments are also described. This manual is written in Chinese.

What's inside

• System Requirements
• Software Installation and Settings
• Editing Test Projects
• Function Settings
• Running Measurements
• Common Application Tests
• Diode IV Characteristic Measurement
• Electrochemical Applications

Specifications

Frequently asked questions

How can I change the communication mode to RS‑232?

Press the Menu key on the instrument front panel, select COMMUNICATION, and switch the communication mode to RS‑232.

What is the default GPIB address for the 2400 series?

The default factory GPIB address is 24.

What Windows versions are compatible with the software?

The software runs on Windows XP, Vista, 7, 8, 8.1, and 10.
