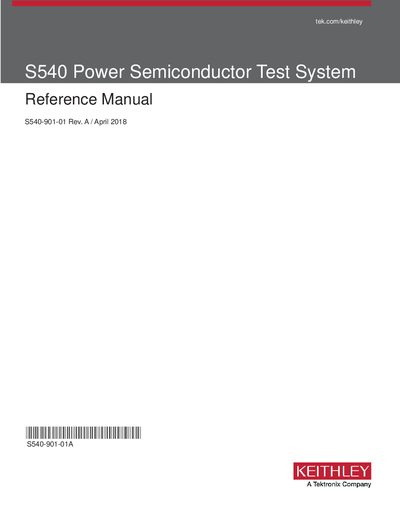

The Keithley S540 Reference Manual provides safety guidelines, installation steps, software usage, and troubleshooting for the Power Semiconductor Test System.
This reference manual covers all aspects of the Keithley S540 Power Semiconductor Test System, including safety precautions, system description, installation, and operation. It details the required environment, power connections, and the layout of the system cabinet.
The document also explains the software tools, test sequence creation, diagnostics, and maintenance procedures. Calibration, verification, and troubleshooting steps are provided to ensure reliable high‑voltage measurements and system performance.
| Operating temperature range | 0 °C to 50 °C |
|---|
Read and follow all safety precautions, ensure only trained personnel operate the system, disconnect power before any maintenance, and use protective equipment as described.
Verification uses a specific probe card and a series of tests that compare each SMU to the others, ensuring the system meets its calibrated specifications.
