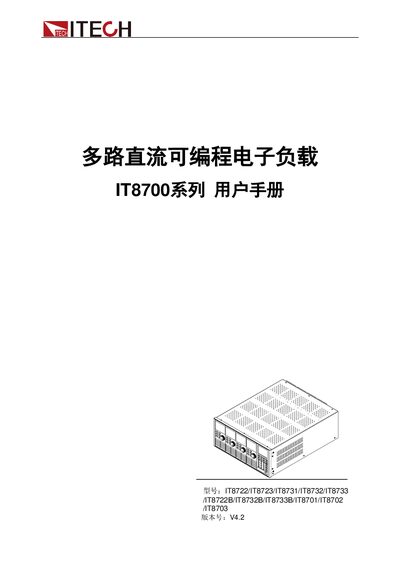

User manual for the Itech IT8700 series multi‑channel DC programmable electronic load, covering safety, installation, operation, specifications and remote…
The manual provides safety warnings, warranty information and regulatory compliance for the IT8700 series electronic loads. It details unpacking, module installation, wiring, and environmental requirements before the device can be powered on.
Subsequent chapters describe the front‑panel functions, operation modes (CC, CR, CV, CW, LIST, etc.), protection features, technical specifications, and remote communication options via RS‑232, Ethernet, GPIB and USB. Appendices list optional test leads and accessory part numbers.
| Operating Voltage | 110 V or 220 V |
|---|---|
| Operating Temperature | 0 °C – 40 °C |
| Operating Humidity | 20 % – 80 % (non‑condensing) |
| Storage Temperature | -20 °C – 70 °C |
| Maximum Operating Altitude | 2000 m |
| Installation Category | II |
The manual uses “Caution” signs for potential damage or data loss and “Warning” signs for hazards that could cause personal injury; users must follow the indicated steps.
The IT8702 mainframe can hold four load modules; with dual‑channel modules this provides up to eight channels.
The IT8700 series supports four interfaces: RS‑232, Ethernet, GPIB, and USB.
Itech provides a one‑year quality warranty from the shipment date.
