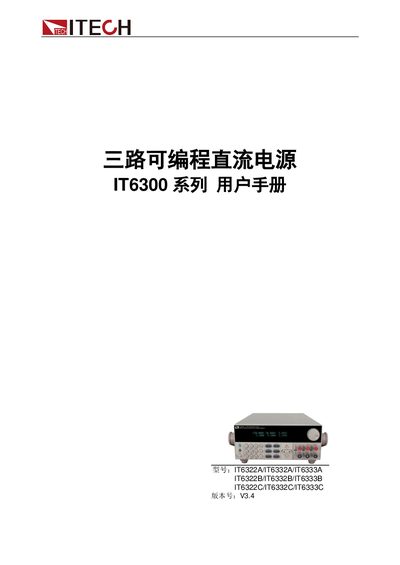

User manual for the Itech IT6300 series three‑channel programmable DC power supply.
The Itech IT6300 series provides three programmable DC output channels with configurable voltage, current and power settings. This manual covers safety precautions, installation, operation, technical specifications, and communication interfaces.
It includes detailed instructions for verification, quick start, function settings, PC communication (RS‑232, USB, GPIB, LAN), and an appendix with optional test leads and warranty information. This manual is written in Chinese.
| Output voltage range | 0–30 V (CH1, CH2), 0–5 V (CH3) |
|---|---|
| Output current range | 0–3 A (all channels) |
| Maximum power | 90 W (CH1, CH2), 15 W (CH3) |
| Voltage accuracy | ≤0.01 % + 3 mV |
| Voltage ripple (20 Hz‑20 MHz) | ≤3 mV p‑p |
| Dimensions (W×H×D) | 255 mm × 108.7 mm × 365.3 mm |
| Weight | 15 kg |
ITECH provides a one‑year quality warranty from the shipment date.
The device operates between 0 °C and 40 °C.
It has three programmable output channels.
