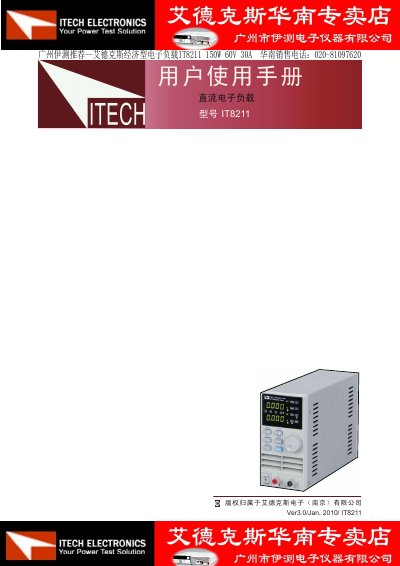

This document is a user manual for the IT8211 model DC electronic load produced by Edex Electronics (Nanjing) Co., Ltd. The manual includes safety regulations, certification and quality assurance, notices, and warranty information.
The IT8211 DC electronic load provides programmable constant‑voltage, constant‑current and constant‑resistance modes with 10 mV/1 mA resolution. It features over‑voltage, over‑current, over‑power and polarity‑reverse protection, and allows up to 40 programmable list groups for quick test setups.
The manual includes safety rules, warranty information, compliance statements, detailed panel layout, operation instructions for each mode, OCP configuration, address and group settings, and a full technical specifications table. This manual is written in Chinese.
| Voltage range | 0 ~ 60 V |
|---|---|
| Current range | 1 mA ~ 30 A |
| Maximum power | 150 W |
| Voltage resolution | 10 mV |
| Default OCP setting | 30 A |
The factory default OCP is set to 30 A.
The device allows 40 list groups, each with four preset values (A/B/C/D).
