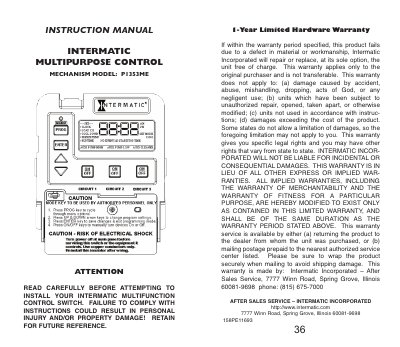

Installation, wiring and programming guide for the Intermatic P1353ME multipurpose control mechanism.
The Intermatic P1353ME Multipurpose Control Mechanism is a three‑circuit controller designed for pool, spa and other resistive loads. It can switch up to 17 A resistive loads or 17 FLA motor loads per circuit and includes optional freeze sensor, firemen switch and remote control accessories.
This manual provides safety warnings, step‑by‑step installation instructions, wiring diagrams, mode selection, timer programming, and troubleshooting information. It also details the warranty, memory retention and special features such as countdown timers and freeze protection.
| Maximum Resistive Load per Circuit | 17 A at 120/240 V AC |
|---|---|
| Maximum Motor Load per Circuit | 17 FLA (Full Load Amps) at 120/240 V AC |
| Power Consumption | 6 W max |
| Contact Ratings (All Modes) | 5 A Tungsten, 5 A Ballast at 120/240 V AC |
| Events per Circuit | 3 ON/OFF events |
| Memory Retention | 40 years for programmed settings, 8 hours for time |
| Clock Circuit Protection | Fast‑acting type 5 × 20, 125 mA fuse |
The product includes a 1‑Year Limited Hardware Warranty.
Programmed settings are retained for 40 years, while the clock time is retained for up to 8 hours.
The default freeze temperature is set to 32 °F.
