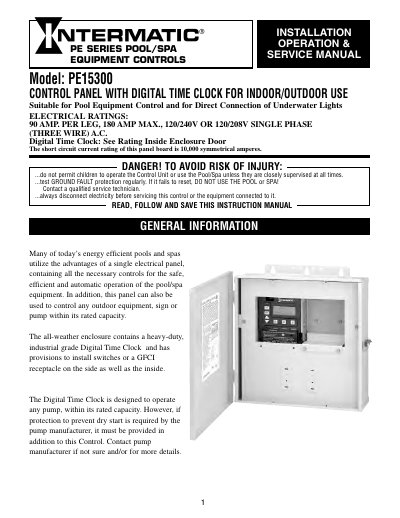

Intermatic PE15300 Pool/Spa Operation & Equipment Controls Installation Guide

About this manual

This document provides installation instructions for the Intermatic PE15300 control panel, a device designed for indoor and outdoor use to manage pool and spa equipment. The panel features a heavy-duty digital time clock and provisions for switches or GFCI receptacles. It is suitable for controlling pumps, heaters, and underwater lights within its rated capacity.

The guide covers safety precautions, mounting procedures, wiring connections, and testing steps. It also includes troubleshooting information for common issues such as display failures and programming errors, along with a wiring diagram and limited warranty details.

What's inside

• General Information
• Important Safety Instructions
• Installation
• Accessories
• Troubleshooting
• Wiring Diagram
• Operation
• Warranty

Specifications

Frequently asked questions

What is the minimum distance required for installation from the pool edge?

The control must be installed not less than 5 feet (3 meters in Canada) from the inside edge of the pool.

What type of conductors should be used for installation?

Only copper conductors should be used for the installation.

What is the short circuit current rating of the panel?

The short circuit current rating of this panel board is 10,000 symmetrical amperes.
