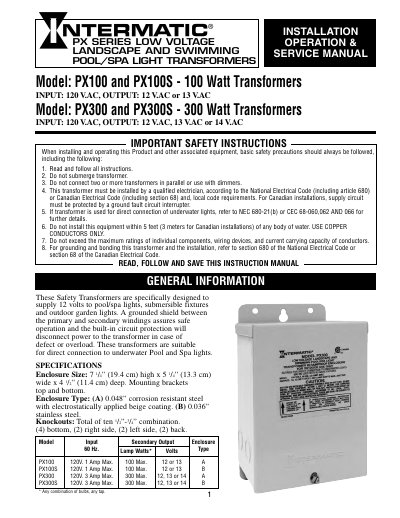

INTERMATIC PX100/PX100S - 100 Watt Transformers PX300/PX300S - 300 Watt Transformers installation Manual

This manual describes the installation, operation and maintenance of the PX series low voltage landscape and swimming pool/spa light transformers.

Brand: Intermatic
Category: Other
Document type: Service Manual
Language: English
Pages: 2
File format: PDF
File size: 83 KB
Published: 06 August, 2012
Updated: 30 September, 2023
MD5 checksum: F28490D70A3751E7C2338D4982548CAC
PDF: INTERMATIC PX100/PX100S - 100 Watt Transformers PX300/PX300S - 300 Watt Transformers installation Manual PDF

About this manual

This document provides installation and service information for Intermatic PX100/PX100S (100 Watt) and PX300/PX300S (300 Watt) Pool/Spa Light Transformers. It details input/output specifications, enclosure types, and safety precautions required by the National Electrical Code.

What's inside

IMPORTANT SAFETY INSTRUCTIONS
GENERAL INFORMATION
SPECIFICATIONS
INSTALLATION
Pool/Spa Underwater Lighting Application
LANDSCAPE LIGHTING APPLICATIONS

Specifications

Input Voltage	120 V.AC
Output Voltage (PX100)	12 or 13 Volts
Max Output Current (PX100)	1 Amp Max.
Max Output Watts (PX300)	300 Max.
Output Voltage (PX300)	12, 13 or 14 Volts
Enclosure Height	7.5 inches (19.4 cm)

Frequently asked questions

Can these transformers be submerged in water?

No, the manual explicitly states not to submerge the transformer.

What is the maximum wattage rating for the PX100 and PX100S transformers?

The maximum output rating for these models is 100 watts.

What is the maximum wattage rating for the PX300 and PX300S transformers?

The maximum output rating for these models is 300 watts.

How far above the deck level should the transformer be mounted?

The transformer should be mounted at least 1 foot above the deck level.

Download PDF (83 KB)
