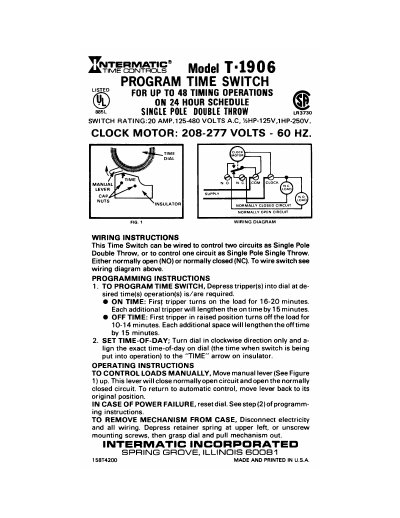

This document is the user manual for the Intermatic Model T-1906 Program Time Switch. The device is listed for up to 48 timing operations on a 24-hour schedule and features a single pole double throw switch rating of 20 Amp at 125-480 Volts A.C. It includes a clock motor rated for 208-277 Volts at 60 Hz.
| Timing Operations | Up to 48 |
|---|---|
| Schedule Type | 24 Hour |
| Switch Rating | 20 Amp, 125-480 Volts A.C. |
| Clock Motor Voltage | 208-277 Volts |
Depress the tripper(s) into the dial at the desired time; the first tripper turns on the load for 16-20 minutes.
Place the first tripper in the raised position to turn off the load for 10-14 minutes.
Move the manual lever up to close the normally open circuit and open the normally closed circuit.
