Huawei CloudEngine S6730-H-V2 series switches provide 10 GE downlink and 100 GE uplink with high‑performance, cloud management and extensive security features.

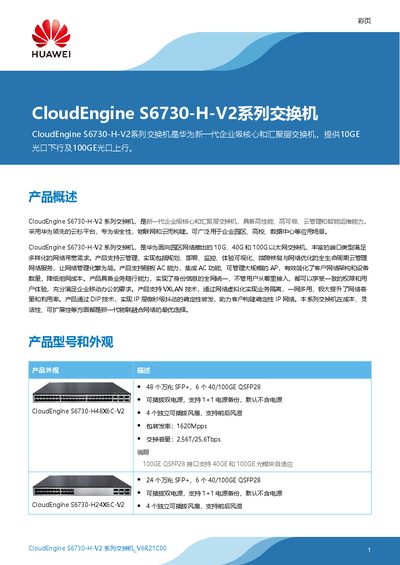

The CloudEngine S6730‑H‑V2 series is a next‑generation enterprise core and aggregation switch from Huawei. It offers 10 GE SFP+ downlink ports and 40/100 GE QSFP28 uplink ports, dual hot‑swappable power supplies, and advanced cloud‑based management for campus, data‑center and campus‑network scenarios.
Key capabilities include VXLAN virtual networking, intelligent iStack stacking, SEP and ERPS ring protection, extensive routing protocols (OSPF, BGP, IS‑IS, etc.), and built‑in security functions such as encrypted traffic analysis and threat deception. The switches also support integrated AC for wireless AP management and a programmable OPS system based on Python. This manual is written in Chinese.
| Port configuration (S6730‑H48X6C‑V2) | 48× 10 GE SFP+, 6× 40/100 GE QSFP28 |
|---|---|
| Port configuration (S6730‑H24X6C‑V2) | 24× 10 GE SFP+, 6× 40/100 GE QSFP28 |
| Switching capacity | 2.56 Tbps |
| Forwarding rate (H48X6C‑V2) | 1620 Mpps |
| Forwarding rate (H24X6C‑V2) | 1260 Mpps |
| Power input (AC) | 100‑240 V AC, 50/60 Hz |
| Maximum power consumption | 291 W |
It provides 48 ten‑gigabit SFP+ ports and six 40/100 gigabit QSFP28 ports.
The switches are compatible with Huawei’s cloud management platform for remote configuration, monitoring and upgrades.
