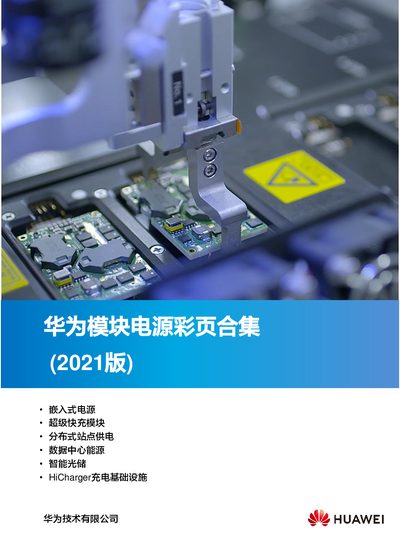

A 2021 collection of Huawei modular power product leaflets covering embedded, fast‑charge, data‑center and charging‑infrastructure modules.
The leaflet collection presents Huawei's modular power portfolio, including embedded power modules, super‑fast‑charge modules, distributed site power solutions, data‑center power products, and charging infrastructure. Each section provides product families, key specifications, and typical application scenarios such as data‑center routers, wireless RRU, and electric vehicles.
Technical details such as input voltage ranges, output power, efficiency, communication interfaces (PMBus, I2C, CAN) and protection features are listed for individual models like the ACG10S50CH, TMN1APSU, and R100030G1. The document also includes compliance with international safety standards (IEC, UL, RoHS) and certification information. This manual is written in Chinese.
| ACG10S50CH Input Voltage | 90‑290 Vac |
|---|---|
| ACG10S50CH Output Voltage | 50 V |
| ACG10S50CH Output Power | 500 W |
| ACG10S50CH Efficiency | 94 % |
| TMN1APSU Input Voltage | 90‑290 Vac / 190‑290 Vdc |
| TMN1APSU Output Voltage | 53.5 V dc |
| TMN1APSU Output Power | 3000 W |
| TMN1APSU Communication Interface | I2C |
| R100030G1 Output Power | 30 kW (max 20 kW at 260 Vac) |
| R100030G1 Efficiency | 95.6 %–96.4 % |
The ACG10S50CH module achieves an efficiency of 94 %.
The TMN1APSU module supports I2C communication for monitoring and control.
The R100030G1 module can deliver up to 30 kW of output power (20 kW at 260 Vac input).
