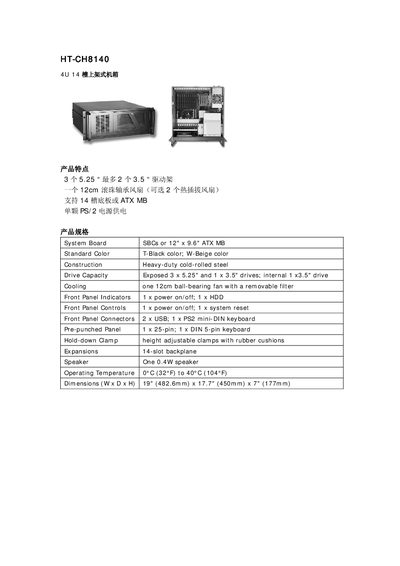

This document describes the specifications and features of the HT-CH8140, a 4U 14-slot rackmount chassis supporting ATX motherboards.
The HT-CH8140 is a 4U 14-slot rackmount chassis designed for industrial or server environments. It supports either a 14-slot backplane or an ATX motherboard (12" x 9.6") and features T-Black or W-Beige color options.
The unit includes drive bays for up to three 5.25-inch drives and two 3.5-inch drive racks, along with one 12cm ball-bearing fan (with an optional hot-swappable version). It is powered by a single PS/2 power supply and features front panel indicators and controls for power, HDD activity, and system reset. This manual is written in Chinese.
| Operating Temperature | 0°C (32°F) to 40°C (104°F) |
|---|---|
| Dimensions (W x D x H) | 19" (482.6mm) x 17.7" (450mm) x 7" (177mm) |
| Standard Color | T-Black color; W-Beige color |
The chassis supports three 5.25-inch and one 3.5-inch drive in exposed bays.
The unit operates between 0°C (32°F) and 40°C (104°F).
The dimensions are 19 inches wide, 17.7 inches deep, and 7 inches high.
