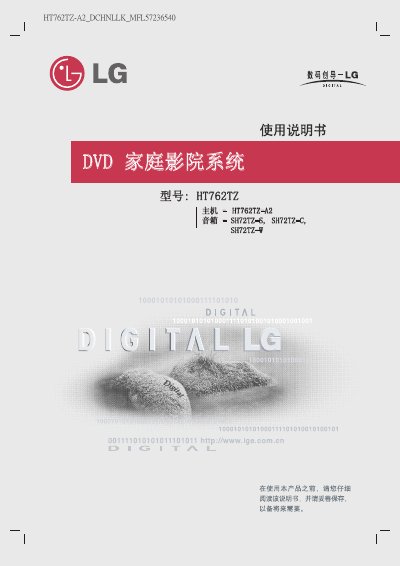

The HT HT762TZ-A2 user manual provides setup, operation, connection, safety and troubleshooting instructions for the home theater system.
The HT762TZ-A2 home theater system includes a DVD/CD receiver, optional SH72TZ series speakers, HDMI and component video outputs, and a remote control with SIMPLINK support for LG TVs. The unit features a semiconductor laser (650 nm) for disc reading and supports DVD, CD, MP3, WMA, JPEG and DivX files.
The manual covers safety warnings, front and rear panel descriptions, remote‑control functions, installation steps for TV, speakers and optional devices, audio/video settings, HDMI resolution changes, and a troubleshooting guide with common fault symptoms and solutions. Technical specifications such as power consumption, dimensions, weight, and audio performance are listed in the specifications section. This manual is written in Chinese.
| Dimensions (W × H × D) | 480 mm × 70 mm × 805 mm |
|---|---|
| Operating temperature | 5 °C to 85 °C |
| Laser wavelength | 650 nm |
| Audio frequency response | 240 Hz to 20 kHz |
| Audio signal‑to‑noise ratio | > 75 dB (1 kHz) |
| Harmonic distortion | 0.5 % (1 W, 1 kHz) |
| Video output level | 1.0 V p‑p, 75 Ω |
Press the RESOLUTION button on the remote control to cycle through the available HDMI resolutions such as 480p, 720p, 1080i or 1080p.
Make sure the power cord is correctly plugged into a live outlet and that the outlet is not overloaded.
Open the battery cover on the remote and insert two AA (R06) batteries, ensuring correct polarity.
Connect the speaker wires to the matching terminals, with the ‘+’ lead to ‘+’ and the ‘–’ lead to ‘–’; reversed connections can cause interference and loss of bass.
