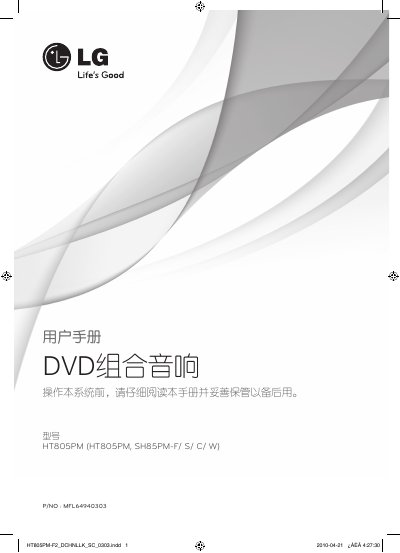

The HT HT805PM DVD combo audio system user manual provides safety guidelines, setup, operation, and troubleshooting instructions.
This manual begins with safety information, warning users about electric shock, fire hazards, and the presence of a laser system. It advises not to open the front or rear cover and to have repairs performed by authorized service personnel. The preparation section describes required accessories, battery handling, and the types of discs and files the unit can play.
The guide then covers installation and connections, including HDMI, component video, optical, USB, and speaker wiring. Detailed settings for audio modes, language, picture, and advanced functions such as recording to USB are explained. The appendix provides region codes, trademark notices, and a full specification table with dimensions, power output, and connector details. This manual is written in Chinese.
| Dimensions (W x H x D) | 360 x 62.5 x 312.3 mm (without legs) |
|---|---|
| Net Weight | 2.8 kg |
| Front Stereo Power Output | 136 W + 136 W (4 Ω at 1 kHz) |
| Surround Mode Power Output | 136 W + 136 W (4 Ω at 1 kHz) |
| HDMI Output | 19‑pin HDMI (standard type A) |
| Digital Optical Input | 3 V (p‑p) via optical fiber connector |
Do not open the front or rear cover; if repair is needed, contact an authorized service center.
It can play DVD±R/RW, CD‑R/RW, audio CDs, MP3, WMA, DivX, JPEG files and other supported video/audio formats.
Use the HDMI cable for high‑definition video/audio or the component video outputs as described in the installation section.
Each front speaker delivers 136 W at 4 Ω (1 kHz) in stereo mode.
