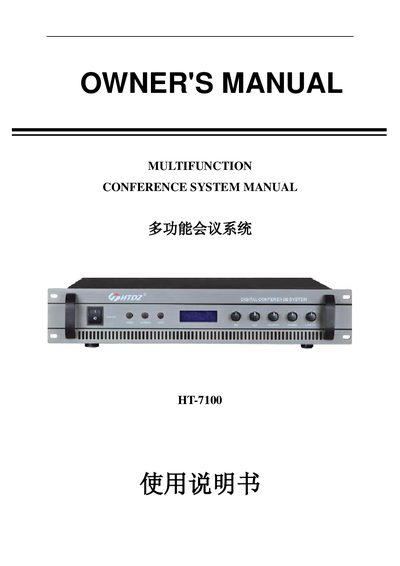

Owner's manual for the HT-7100 multifunction conference system, covering features, operation modes, connections and setup.
The HT-7100 multifunction conference system provides comprehensive meeting management with three operation modes—Free, FIFO and Limit—and can be used with simultaneous interpretation and wired/wireless language distribution. The main unit can operate independently or be linked to a PC for software‑based control, supporting up to 60 representative/chair units (240 with extensions) and offering built‑in video tracking, LCD display and audio I/O.
The system consists of a main controller, representative units, a chair unit and optional high‑speed camera (cloud ball). It includes numerous connectors (audio, video, RS‑232/RS‑422/RS‑485, DIN), a 1.5 W monitor speaker, and can be installed in a standard 19‑inch rack. Detailed wiring, power‑up, and configuration steps are provided to ensure proper installation and safe operation. This manual is written in Chinese.
| Main unit power rating | 415 W |
|---|---|
| Maximum representative units per main unit | 60 (up to 240 with extensions) |
| Extended communication capacity | up to 240 units |
| Frequency response | 40 Hz ~ 16 kHz |
| Total harmonic distortion | < 0.1 % |
| Built‑in monitor speaker | 1.5 W |
| Power consumption | 415 W |
| Input voltage | 220‑240 V AC, 50‑60 Hz |
| Rack compatibility | 19‑inch standard rack |
| Certifications | UL, CE |
The system offers three modes: Free (开放模式), FIFO – first‑in‑first‑out (先进先出), and Limit (限制发言).
