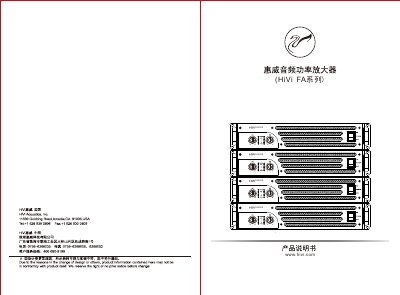

This manual provides safety instructions, installation guidance, operation steps, specifications, and troubleshooting for the HiVi FA300S power amplifier.
The HiVi FA300S is a professional‑grade audio power amplifier designed for high‑performance sound reinforcement. This user manual explains the product’s features, safety precautions, and how to set up and operate the unit safely.
Key sections include safety guidelines, rear‑panel and system connection instructions, performance specifications, dust‑filter cleaning procedures, packaging contents, and detailed troubleshooting for common issues such as no output or abnormal noises. This manual is written in Chinese.
| Frequency response | 20 Hz – 20 kHz (± 0.5 dB) |
|---|---|
| Input sensitivity | 0.775 V / 1 V / 32 dB |
| Input impedance (balanced/unbalanced) | 20 kΩ / 10 kΩ |
| Dimensions (W × H × D) | 482 mm × 382.5 mm × 88 mm |
| Weight | 15.5 kg (± 0.5 kg) |
Clean the dust filter at least once every quarter after the initial cleaning; do not remove the filter, otherwise the product’s lifespan may be reduced.
First verify that the power switch is on and the input signal is correctly connected; if the signal is correct but there is still no sound, check the NL4 connector and try a different channel or replace the connector.
In stereo mode the amplifier is recommended for 8 Ω loads; in bridge mode it should be used with 16 Ω loads.
