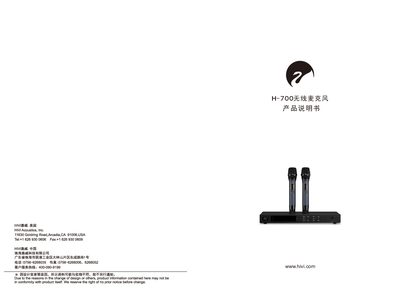

The Hivi H-700 wireless microphone manual provides setup, operation, specifications, and troubleshooting for professional audio use.
This manual introduces the H-700 wireless microphone system, which includes a receiver, handheld transmitter, and microphone components. It explains safety warnings, product features such as PLL dual‑channel lock‑loop, smart ID recognition, and true‑diversity circuitry, and outlines the accessories supplied.
Detailed sections cover the receiver panel and display, handheld microphone controls, step‑by‑step usage instructions, channel and frequency adjustment, infrared sync pairing, technical specifications, troubleshooting tips, and a complete packing list. This manual is written in Chinese.
| Frequency range | 740‑790 MHz |
|---|---|
| Frequency deviation | 30‑50 MHz |
| Number of channels | 216 |
| Audio frequency response | 45 Hz‑18 kHz |
| Signal‑to‑noise ratio | >90 dB (A‑weighting, max output) |
| Output power | 3 mW / 10 mW |
| Power consumption | <180 mA @ 3 V |
| Battery type | 2 × AA batteries |
With two AA batteries the transmitter runs for approximately 6 hours of continuous use.
Turn on the receiver first, then the audio source (e.g., karaoke box), followed by the pre‑amp and finally the power amplifier.
