Hezhong Electric 701/702 Microcomputer Relay Protection Tester Service Manual

This manual explains operation, specifications, wiring, maintenance and service procedures for the 701/702 microcomputer relay protection tester.

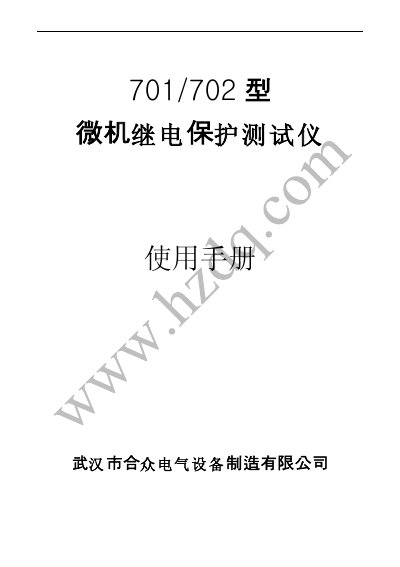

Hezhong Electric 701/702 Microcomputer Relay Protection Tester Service Manual - cover page
Brand
Wuhan市合众电气设备制造
Category
Other
Document type
Service Manual
Language
Chinese
Pages
51
File format
PDF
File size
697 KB
Updated
01 October, 2026
MD5 checksum
4F117A96E928E6E8170176F2E03851A1

About this manual

The 701/702 microcomputer relay protection tester, produced by Hezhong Electric, provides AC and DC voltage and current outputs for testing protection relays. The device features a rotary‑mouse interface, multiple output channels, and built‑in harmonic generation.

The manual covers technical specifications, panel description, step‑by‑step operating instructions, PC software usage, troubleshooting, EPROM replacement, and warranty information. This manual is written in Chinese.

What's inside

  • Introduction
  • Foreword
  • Technical Specifications
  • Operating Principle
  • Panel Description
  • Operation Instructions
  • PC Software Instructions
  • Relay Protection Test Experience and Precautions
  • Single‑Unit Test Methods for Various Relays
  • Main‑board Software Replacement, Fault Maintenance, After‑sales Service

Specifications

AC phase current output (effective) per phase (701 model)0‑30 A
Three‑phase current output (effective) (701 model)0‑90 A
Frequency range (fundamental) (701 model)20‑400 Hz
AC phase voltage output (effective) per phase (702 model)0‑120 V
Line voltage output (effective) (702 model)0‑240 V
Maximum continuous AC current per phase (702 model)10 A
Dimensions400 × 300 × 180 mm
Weight16 kg

Frequently asked questions

What is the maximum AC voltage output per phase for the 702 model?

The tester can output up to 120 V AC per phase.

How do I replace the EPROM chip on the main board?

Turn off the device, lay it flat, open the top cover to locate the EPROM chip on the main board, gently pry it out with a small screwdriver, insert the new EPROM in the same orientation, close the cover and power the unit back on.

What should I check if the output voltage is abnormally low?

Inspect the two 2 A fuses above the power input socket for continuity.
