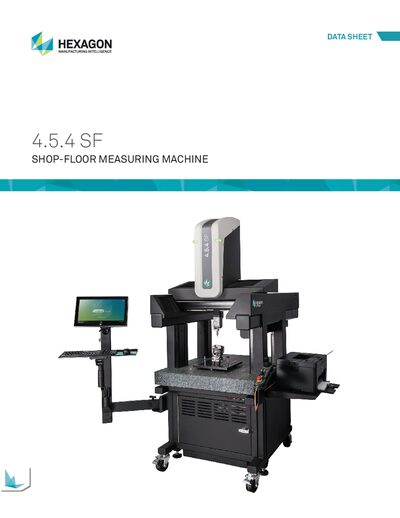

The Hexagon SF Shop-Floor Measuring Machine data sheet provides dimensions, weights, performance specs, and installation requirements.
The SF Shop-Floor Measuring Machine from Hexagon Manufacturing Intelligence is a high‑precision coordinate measuring machine designed for shop‑floor use. It is offered in configurations with and without a touchscreen, each providing a large measuring envelope and robust work capacity.
The data sheet lists key technical specifications such as overall dimensions, weight, maximum 3D speed and acceleration, and detailed accuracy performance according to ISO 10360‑2 and ASME B89.4.1b‑2001. Installation requirements include strict vibration limits to ensure the stated performance levels.
| Repeatability (R0,MPL) | 3.1 µm |
|---|---|
| Volumetric accuracy (Av[L]) | 6.4 + 0.3·ΔT µm |
| Installation site vibration limit | ≤ 2 µm horizontal & vertical amplitude (5‑50 Hz) |
Installation site vibration must be less than 2 µm maximum horizontal and vertical amplitude over the frequency range 5‑50 Hz.
