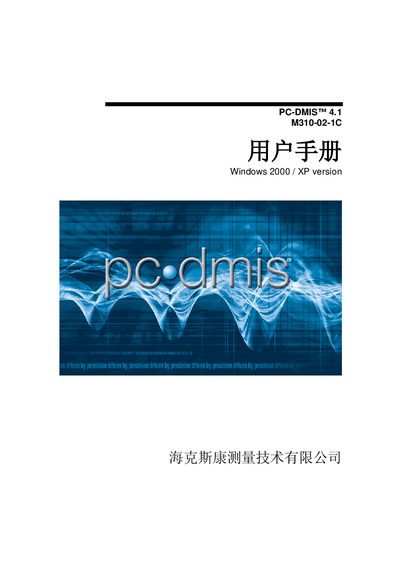

Hexagon M310-02-1C User Manual

About this manual

This manual covers the PC‑DMIS 4.1 software used with the Hexagon M310-02-1C coordinate measuring machine. It provides an overview of the CMM, details on software configuration, CAD linking, and the user interface, as well as step‑by‑step measurement procedures.

Additional sections describe probe and head setup, automatic feature creation, report generation, import/export of CAD files, and error handling. The document also includes guidance on customizing the interface, changing screen colors, and using various communication interfaces for different probe systems. This manual is written in Chinese.

What's inside

• Coordinate Measuring Machine Overview
• Software Configuration
• CAD Linking
• User Interface Navigation
• Measurement Procedures
• Probe and Head Setup
• Automatic Feature Creation
• Report Generation
• Import/Export CAD Files
• Error Handling

Specifications

Frequently asked questions

How do I import a CAD file into PC‑DMIS?

Select the Import CAD option, choose the file type (e.g., IGES, DXF, STEP) and follow the dialog prompts to load the geometry.

How can I change the screen colors in the graphics window?

Open the Screen Color dialog from the View menu and adjust the color settings as needed.

How do I reset the software to its default settings?

Use the Reset to Default option in the Settings tab to restore all configuration parameters to their factory defaults.
