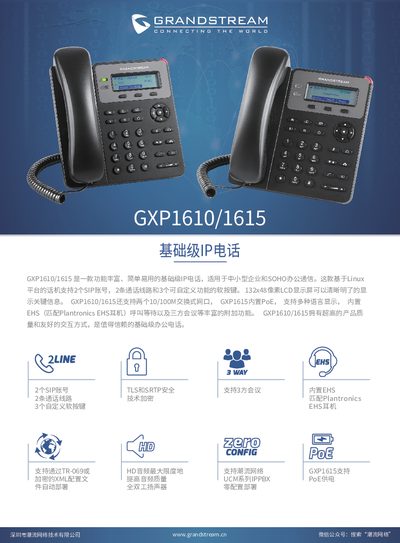

The Grandstream GXP1610/1615 IP phone quick install manual provides setup steps, features, and specifications for the basic‑level IP phone.
The GXP1610/1615 is a basic‑level IP phone designed for small‑to‑medium businesses and SOHO environments. It runs on a Linux platform, supports two SIP accounts, two call lines, and three customizable soft keys, with a 132 × 48‑pixel LCD display and dual 10/100 Mbps Ethernet ports (PoE on the GXP1615).\n\nThis quick install manual covers protocol standards, hardware interfaces, key functions, installation options (desktop and wall‑mount), security features, multilingual support, firmware upgrade methods, power specifications, physical dimensions, and the contents of the product package. This manual is written in Chinese.
| LCD display resolution | 132 × 48 pixels |
|---|---|
| Network ports | Two 10/100 Mbps Ethernet ports (PoE on GXP1615) |
| Supported SIP accounts | 2 |
| Supported call lines | 2 |
| Dimensions (L × W × H) | 209 mm × 184.5 mm × 76.2 mm |
| Weight | 0.74 kg |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -10 °C to 60 °C |
| Relative humidity | 10 % to 90 % (non‑condensing) |
It supports two SIP accounts.
Yes, the GXP1615 includes built‑in PoE support.
The LCD display has a resolution of 132 × 48 pixels.
The phone measures 209 mm long, 184.5 mm wide, and 76.2 mm high.
