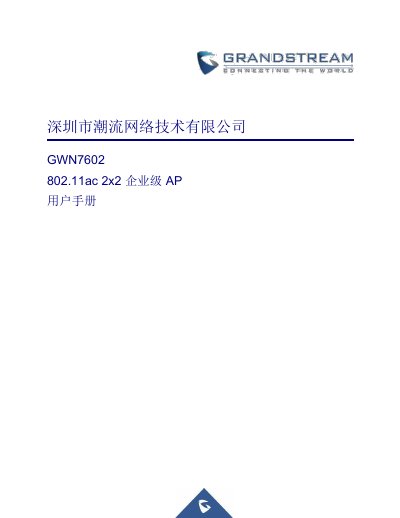

User manual for the Grandstream GWN7602 enterprise Wi‑Fi access point, covering installation, configuration, and maintenance.
The GWN7602 is an enterprise‑grade Wi‑Fi access point designed for small‑business, office, and hospitality environments. It provides dual‑band 2×2 MIMO radios, PoE/PoE+ power, and up to three 100 Mb Ethernet ports for IP phones, IPTV, and computers.
This manual guides network administrators through product overview, hardware installation, initial setup via the web interface, cloud management with GWN.CLOUD, firmware upgrades, client configuration, and troubleshooting steps such as resetting to factory defaults. This manual is written in Chinese.
| Wi‑Fi Standards | IEEE 802.11a/b/g/n/ac |
|---|---|
| Antenna | 2 internal dual‑band antennas |
| Antenna Gain | 2.4 GHz: 3.0 dBi / 5 GHz: 3.5 dBi (antenna 1) ; 2.4 GHz: 3.5 dBi / 5 GHz: 3.0 dBi (antenna 2) |
| Maximum Transmit Power | 5 GHz: 21 dBm, 2.4 GHz: 21 dBm |
| Coverage Range | Up to 100 m |
| Ethernet Ports | Three 100 Mb ports (PoE/PoE+ capable) |
From the web interface, go to Access Point → Configuration, select the device and click the Reset button to restore factory settings.
The device supports IEEE 802.11a, b, g, n, and ac standards.
The access point can cover up to approximately 100 meters.
