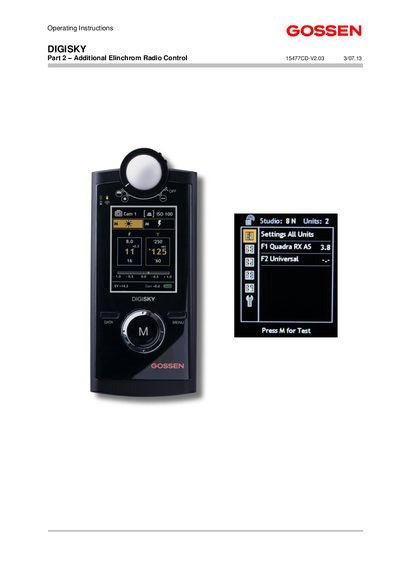

Operating instructions for the Gossen DIGISKY H260A with added Elinchrom radio control functions.
The Gossen DIGISKY H260A is a light‑meter with integrated radio control for Elinchrom studio flash units. This manual explains the additional Elinchrom radio control features, safety precautions, setup, and operation.
It covers preparation, RF channel configuration, menu navigation, flash‑group control, technical data, firmware updates, and regulatory information required for safe and compliant use.
| Radio frequency channel 1 | 2456 MHz |
|---|---|
| Radio frequency channel 2 | 2458 MHz |
| Radio frequency channel 3 | 2460 MHz |
| Radio frequency channel 4 | 2462 MHz |
| Radio frequency channel 5 | 2469 MHz |
| Radio frequency channel 6 | 2471 MHz |
| Radio frequency channel 7 | 2473 MHz |
| Radio frequency channel 8 | 2475 MHz |
| Replacement battery | V070A, 3.7 V / 890 mAh |
| Product name / model | DIGISKY H260A |
The DIGISKY must have firmware version 2.01 or higher.
The DIGISKY can control up to six studio flash units at once.
It uses eight channels, from 2456 MHz (channel 1) up to 2475 MHz (channel 8).
Updates can be downloaded from the Gossen website.
