The R2700 is a powerful thermocouple controller that can be used for precise, no-overshoot control tasks and temperature limiting. The device features numerous monitoring functions and alarms to ensure safe operation in harsh conditions.

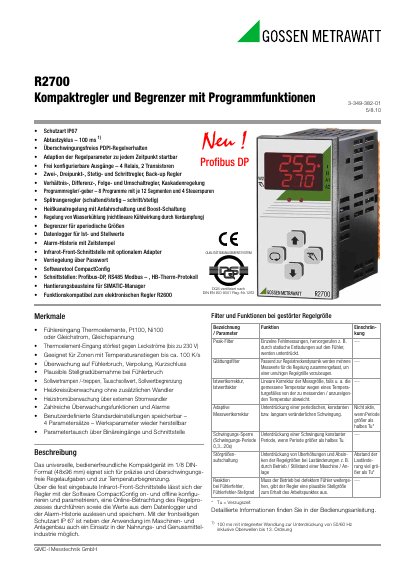

The GOSSEN METRAWATT R2700 is a universal, user-friendly compact device in a 1/8 DIN format designed for precise and overshoot-free control tasks and temperature limiting. It features a robust IP67 protection rating, making it suitable for use in machinery, plant construction, and the food and beverage industry.
The device offers flexible configuration with four relays and two transistors as outputs, supporting various controller types including two-point, three-point, continuous, and step controllers. It includes an integrated infrared front interface for configuration via the CompactConfig software and supports interfaces such as Profibus-DP and RS485 Modbus. This manual is written in German.
| Protection Class | IP67 |
|---|---|
| Sampling Cycle | 100 ms |
| Dimensions | 1/8 DIN (48x96 mm) |
| Interfaces | Profibus-DP, RS485 Modbus |
The device has a sampling cycle of 100 ms, which can be extended to 400 ms with integrated conversion to suppress 50/60 Hz noise.
The controller is a compact device in the 1/8 DIN format with dimensions of 48x96 mm.
