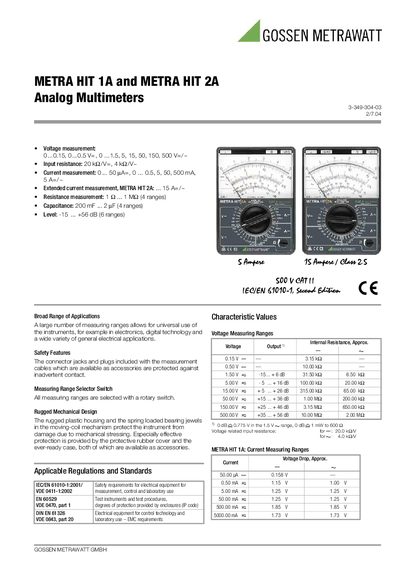

This document describes the features and characteristics of GOSSEN METRAWATT GMBH METRA HIT 1A and METRA HIT 2A analog multimeters, including a broad range of applications, safety features, measuring range selector switch, and rugged mechanical design.
The METRA HIT 1A and 2A are analog multimeters with a wide range of measurement functions, including voltage (0.15 V to 500 V), current (up to 15 A on the 2A model), resistance (1 Ω to 1 MΩ), capacitance (200 µF to 2 µF) and level detection. All measuring ranges are selected with a rotary switch and the instruments feature a rugged plastic housing with protective rubber cover and an ever‑ready case.
Safety features include IEC/EN 61010‑1 compliance, measuring category II, IP 40 enclosure protection and replaceable fuse links. The manual also lists optional accessories such as protective cases, cable sets and current‑measuring adapters, and provides reference conditions for accuracy and environmental limits.
| Voltage measuring ranges | 0.15 V – 0.5 V, 1.5 V, 5 V, 15 V, 50 V, 150 V, 500 V |
|---|---|
| Current measuring ranges | 0.5 mA – 500 mA (1A), up to 15 A (2A model) |
| Input resistance | 20 kΩ/V (voltage), 4 kΩ/V (current) |
| Accuracy class | Class 2.5 (voltage), ±2 % (15 A range) |
| Safety category | Category II, Safety class II |
| Dimensions | 92 × 126 × 45 mm |
| Weight | ≈0.3 kg (without battery) |
They cover ranges from 0.15 V up to 500 V, including 0.5 V, 1.5 V, 5 V, 15 V, 50 V, 150 V and 500 V.
The input resistance is 20 kΩ/V for voltage measurement and 4 kΩ/V for current measurement.
It complies with Safety class II per IEC/EN 61010‑1 and is rated for Measuring category II.
Standard equipment includes one analog multimeter, operating instructions, and optional accessories such as an ever‑ready case, protective rubber cover, and cable set.
