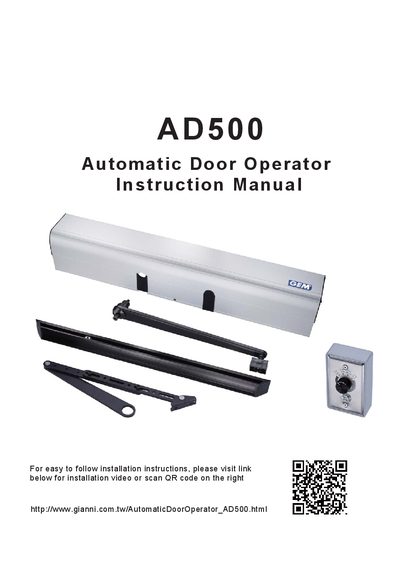

The Gianni AD500 manual provides safety guidelines, installation steps, specifications, and maintenance instructions for the automatic door operator.
This manual covers general safety precautions, product features, parts identification, and detailed specifications for the Gianni AD500 automatic door operator. It includes step‑by‑step installation guidance for both inswing and outswing doors, wiring diagrams, and configuration of the control unit.
Additional sections address troubleshooting, maintenance, optional accessories, and engineering notes, ensuring qualified professionals can safely install, operate, and service the device in compliance with relevant standards.
| Operating Voltage | 100~240 VAC |
|---|---|
| Motor Voltage | 60 VDC |
| Maximum Torque Output | 40 Nm |
| Opening Time (0°‑90°) | 5‑8 seconds |
| Closing Time (90°‑10°) | 12‑25 seconds |
| Door Weight Range | 50‑150 kg |
| Operating Temperature | -4 °F to +113 °F (-20 °C to +45 °C) |
| Net Weight | 13.3 kg (30 lbs) |
| Maximum Degree of Opening | 80°‑120° |
The AD500 is rated for doors weighing between 50 kg and 150 kg.
It offers four modes: Auto, Hold, Manual, and Push.
The unit operates on 100 V to 240 V AC, 50/60 Hz.
Yes, the manual provides separate installation instructions for inswing and outswing door configurations.
