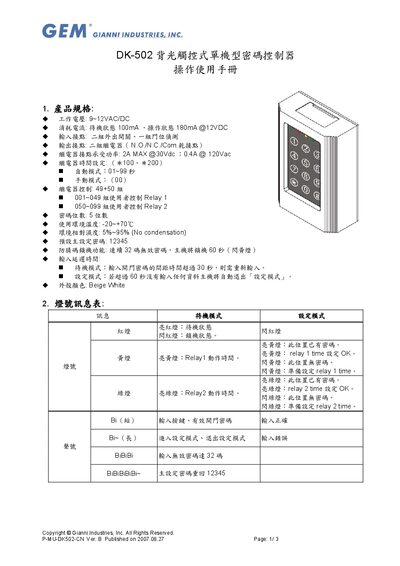

The Gianni DK-502 manual provides specifications, LED indicators, operation steps, wiring reference and warranty information.
This manual describes the DK-502 backlit touchscreen standalone password controller, including its electrical specifications, relay functions, and environmental limits. It also explains the LED indicator meanings for standby, setting, and lock states.
Detailed operation instructions cover entering and exiting setting mode, adding, deleting and clearing passwords, and configuring relay timing. A wiring reference diagram and protection recommendations are provided, along with warranty terms. This manual is written in Chinese.
| Working Voltage | 9~12 VAC/DC |
|---|---|
| Relay Time Settings | *100, *200 |
The default main password is 12345.
