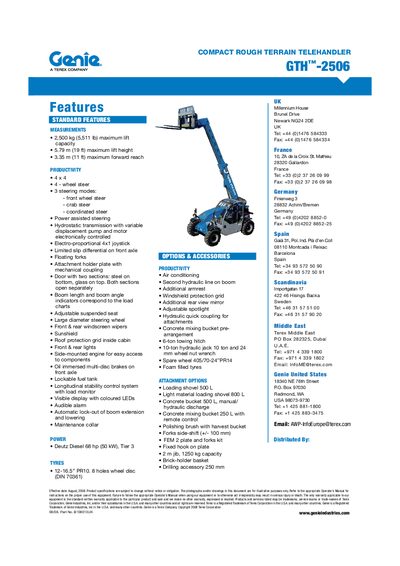

The Genie GTH-2506 specification sheet lists dimensions, capacities, engine details and performance data for this compact rough‑terrain telehandler.
The Genie GTH‑2506 is a compact rough‑terrain telehandler designed for construction and material‑handling tasks where space and maneuverability are limited. The sheet provides the key technical data needed by specifiers, dealers and operators.
Key figures include a maximum lifting capacity of 2,500 kg, a lifting height of 5.79 m, a 68 hp Deutz diesel engine, and a top travel speed of 24 km/h. Dimensions, weight, and compliance information are also detailed for quick reference.
| Maximum lifting height | 5.79 m (19 ft) |
|---|---|
| Maximum lifting capacity | 2,500 kg (5,511 lbs) |
| Lift capacity at maximum height | 2,000 kg (4,409 lbs) |
| Forward reach maximum | 3.35 m (11 ft) |
| Overall length | 5.04 m (16 ft 6 in) |
| Ground clearance | 33 cm (1 ft 1 in) |
| Engine | Deutz D 2011 L04 4‑cylinder Diesel, 68 hp (50 kW) |
| Fuel tank capacity | 60 L (13 gal) |
| Weight | 4,450 kg (9,810 lbs) |
| Maximum travel speed | 24 km/h (15 mph) |
The telehandler can lift up to 2,500 kg (5,511 lbs).
It is equipped with a Deutz D 2011 L04 4‑cylinder diesel engine delivering 68 hp (50 kW).
The maximum travel speed is 24 km/h (15 mph).
