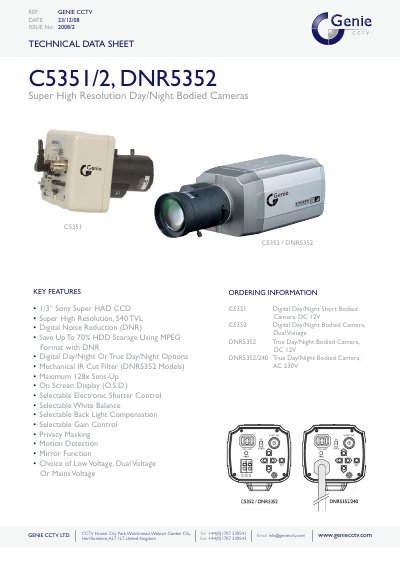

This file is the technical data sheet of GENIE CCTV LTD. C5351/2, DNR5352 Super High Resolution Day/Night Bodied Cameras, which mainly introduces the features and characteristics of the product, including 1/3'' Sony Super HAD CCD, Super High Resolution, Digital Noise Reduction, Digital Day/Night Or True Day/Night Options, Mechanical IR Cut Filter, Maximum 128x Sens-Up, On Screen Display (O.S.D.), Selectable Electronic Shutter Control, Selectable White Balance, Selectable Back Light Compensation, Selectable Gain Control, Privacy Masking, Motion Detection, Mirror Function, Choice of Low Voltage, Dual Voltage Or Mains Voltage.
The Genie CCTV C5351, C5352 and DNR5352 series are super‑high resolution day/night cameras featuring a 1/3" Sony Super HAD CCD sensor, 540 TVL colour resolution and digital noise reduction. They support various power options (DC 12 V, dual voltage, AC 230 V) and include functions such as electronic shutter control, white balance, back‑light compensation, privacy masking and motion detection.
The data sheet provides detailed technical specifications, including sensor type, resolution, sensitivity, power consumption, dimensions and operating conditions. Ordering information lists the different model variants and their respective power supply configurations.
| Image Sensor | Sony 1/3" Colour Super HAD CCD |
|---|---|
| Horizontal Resolution | 540 TVL (Colour), 570 TVL (Mono) |
| Sensitivity | 0.3 Lux (Colour), 0.1 Lux (Mono), 0.002 Lux (Sens‑Up) |
| Power Consumption | 160 mA / 250 mA (AC 24 V) / 400 mA (DC 12 V) = 4.5 W |
| Dimensions (W × H × L) | 69 × 69 × 60 mm (C5351) / 62 × 56 × 120 mm (others) |
The cameras use a Sony 1/3" Colour Super HAD CCD sensor.
The DNR5352 model can be powered by DC 12 V, dual voltage (DC 12 V/AC 24 V) or AC 230 V.
Yes, built‑in motion detection is available with up to four programmable zones.
The cameras provide 540 TVL resolution in colour and 570 TVL in monochrome.
